Tehnički podaci
| Adjustable | No |
|---|---|
| Field Of Application | Industrial |
| Floor | Resin |
| GWP total Co2 eq. for A1-A3 per product | 35,46kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Shape of frame | Round |
| Size of Frame (inch) | Ø8⅛ |
| Size of frame (mm) | Ø205 |
| Weight (kg) | 5,98 |
| Weight (lbs) | 13,18 |
| EAN | 5705499123609 |
| Proizvođač | BLÜCHER |
Dokumentacija i nacrti

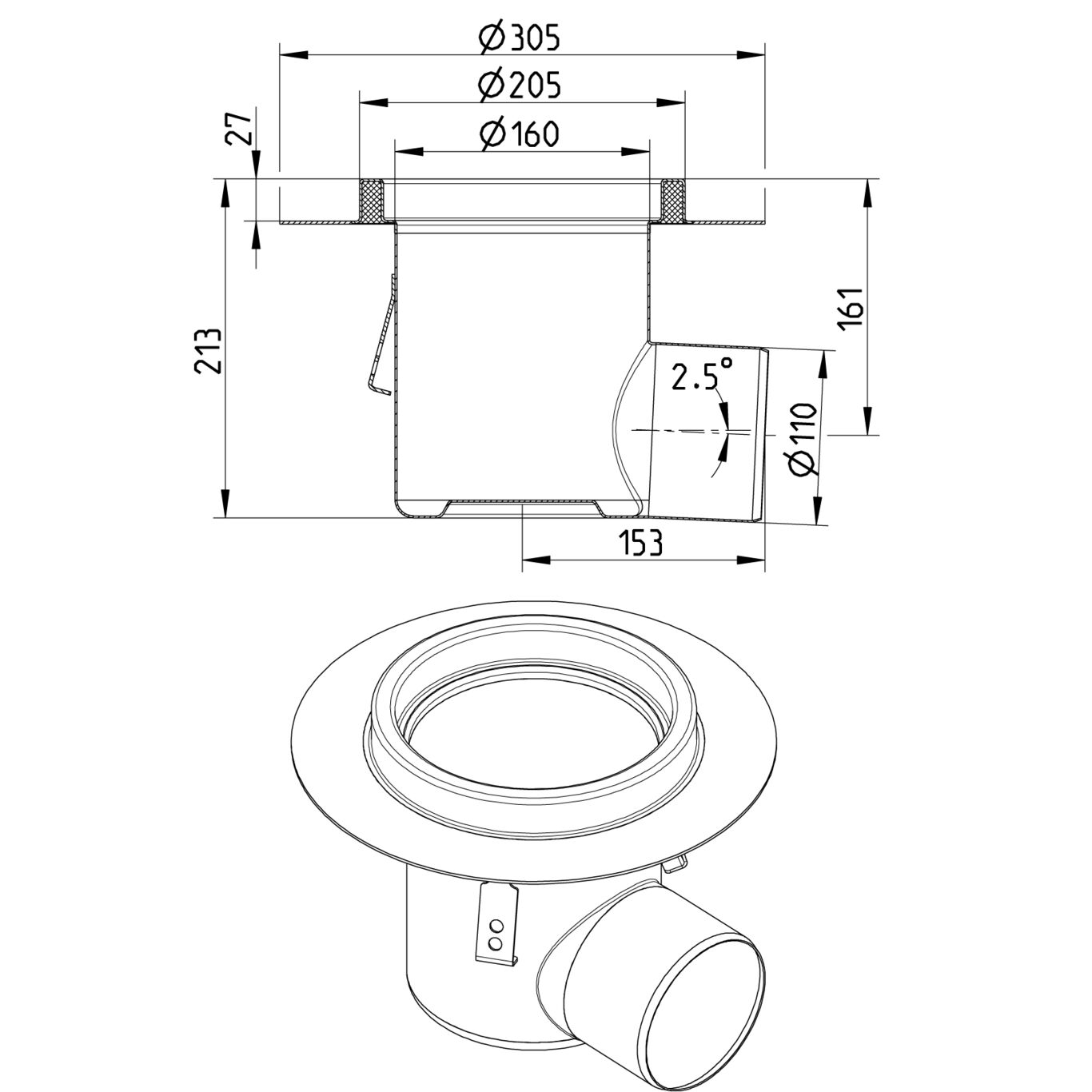

- PDF nacrt – 763.522.110
- DWG – 763.522.110
- Installation – Floor Drains. Frame size between 200 and 300mm
- Maintenance Manual – Floor Drains. Top size: Ø232/Ø332mm or Frame size between 200 and 300mm
- HACCP Food Safety Programme – Europe
- BLÜCHER® Drains EPD
- HACCP Food Safety Programme – Australasia
- Declaration of Conformity – EN1253-001
- PL – Hygienic Certificate – All Products
- Declaration of Conformity – BSEN1253-002
Proizvođač: BLÜCHER
Uvoznik i distributer: Legomont d.o.o.
